Engineered Steel (精制钢) is a high-precision structural steel profile manufactured through cold-forming, welding, or hot extrusion processes. Compared with conventional steel and aluminum, it offers higher strength, slimmer profiles, better dimensional accuracy, and improved fire resistance, making it ideal for large-span curtain wall applications.
Type:
Exquisite Steel & Aluminum ProfilesHS Code:
7228800000Product origin:
chinaMaterial:
Q235,Q355Payment:
L/CViews:

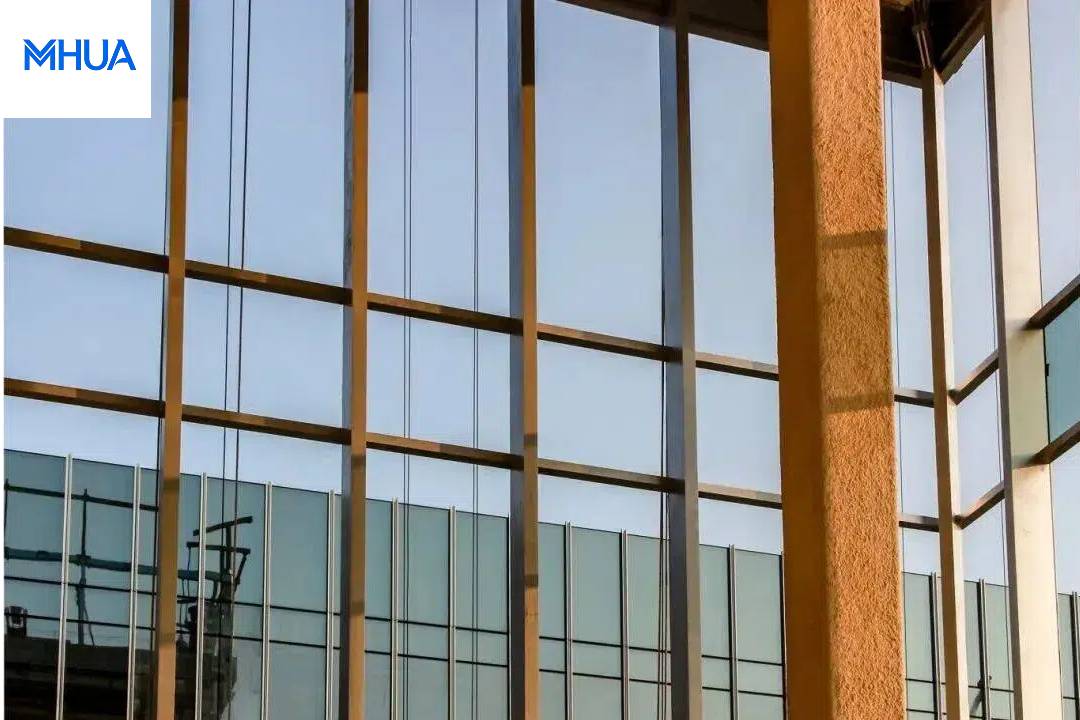

123In the curtain wall industry, Engineered Steel (also known as precision-fabricated steel or 精制钢) has become the core material for large-span glass curtain walls. With its unique advantages, it demonstrates irreplaceable value in modern architecture.
The following sections explore some of the lesser-known aspects of engineered steel from the perspectives of performance, innovative applications, and future development.

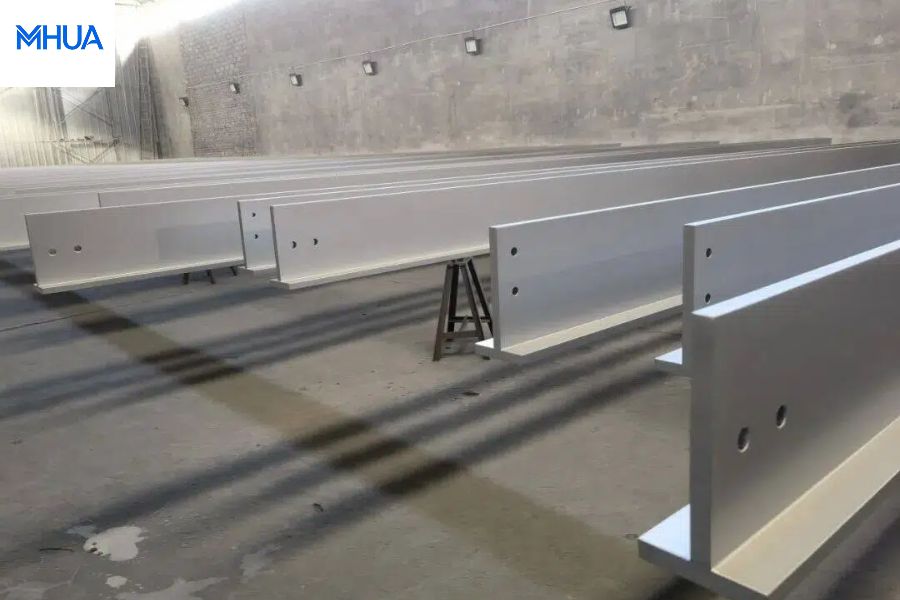

The manufacturing process of engineered steel gives it exceptional performance. Through cold-forming or fabricated welded sections, it can achieve a high level of dimensional accuracy, with section tolerances of ≤2.5 mm and corner radii (R) of ≤0.5 mm.
This ultra-slim profile design enables engineered steel sections to reduce their cross-sectional size by more than 30% compared with aluminum sections under the same structural span, significantly enhancing the lightness and transparency of the building façade.
At the same time, engineered steel has an elastic modulus of approximately 206 GPa, which is nearly three times that of aluminum (approximately 70 GPa). This means that engineered steel undergoes much smaller deformation when subjected to external loads, ensuring the stability of large-span curtain wall systems under a wide range of environmental conditions.
Steel has a melting point of approximately 1,500°C, which gives it significantly better fire resistance than aluminum, whose melting point is approximately 660°C. In public buildings with high occupant density—such as airports, stadiums, and large shopping malls—fire safety is a critical design consideration. Thanks to its high melting point, Engineered Steel (精制钢) has become the preferred material for fire-resistant curtain wall systems in these types of buildings.
Engineered Steel (精制钢) also performs well in terms of energy efficiency and sustainability. Through optimized profile design, engineered steel sections can reduce material consumption, decrease the overall building weight, and help lower carbon emissions.
Surface treatment technologies, such as PVDF fluorocarbon coating, improve weather resistance and extend the service life of the curtain wall system, enabling projects to better satisfy the requirements of green building certification systems such as LEED and BREEAM.
In addition, the manufacturing process of Engineered Steel (精制钢) typically consumes approximately 40% less energy than aluminum production. These environmental and sustainability advantages provide engineered steel with significant potential for future architectural applications.

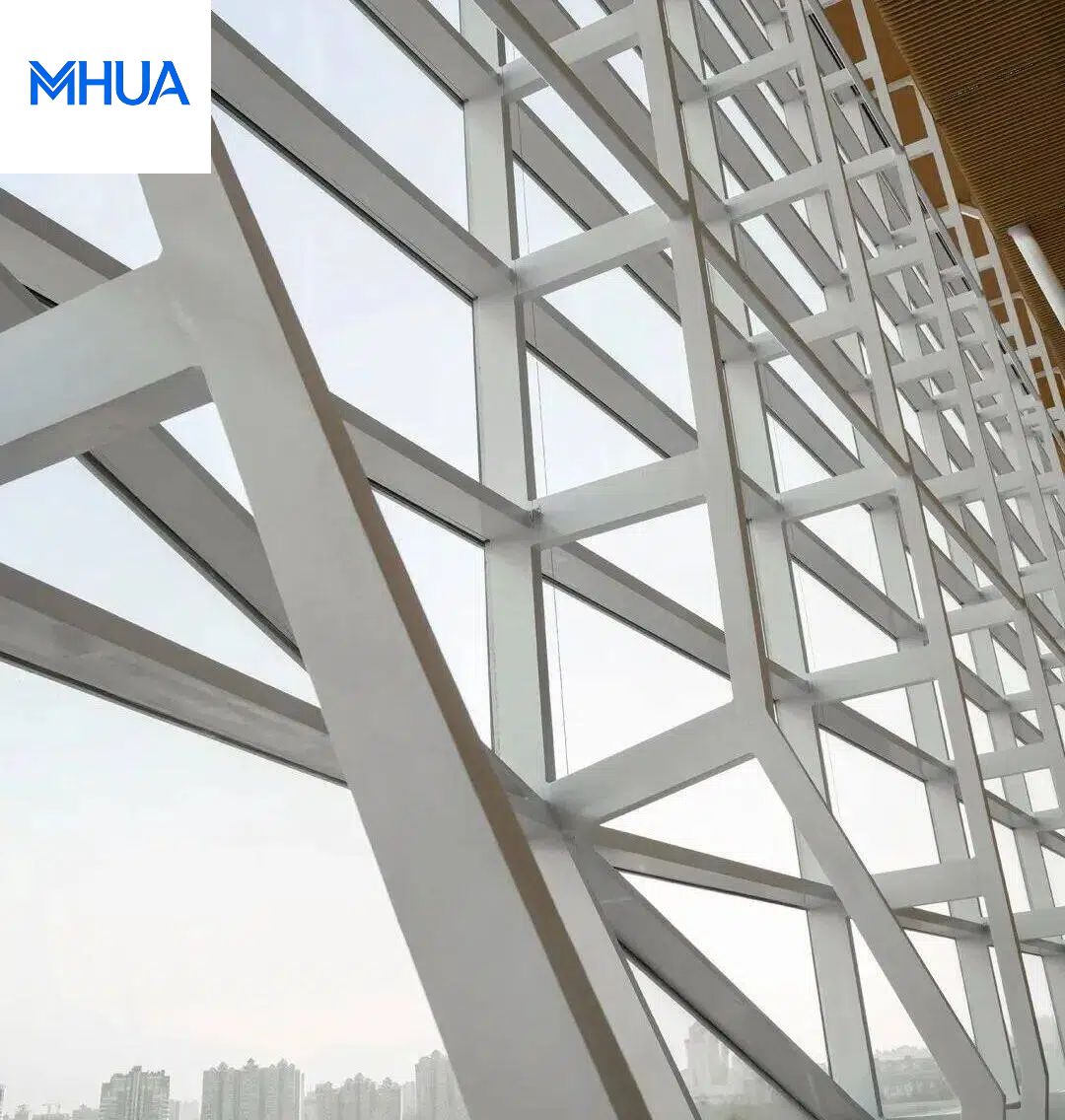

The "WLA Science Community" Shanghai Top Science Community Laboratory Project features three laboratory buildings whose architectural form resembles butterflies spreading their wings in flight. The internal "butterfly skeleton" consists of 2,040 steel components, and the project adopts a large-span Engineered Steel (精制钢) curtain wall system.
The primary steel mullions are 17 meters in length, with each member weighing approximately 3.5 tonnes, making lifting and installation particularly challenging. When conventional welded Engineered Steel (精制钢) sections are used, the fabrication cycle is approximately two months, while weld treatment is difficult and carries a relatively high risk of cracking during long-term service.
To address these challenges, the project team carried out multiple rounds of design optimization and construction planning. Ultimately, they adopted a new type of hot-extruded Engineered Steel (精制钢) profile, which maintained the same architectural appearance while successfully overcoming the fabrication and welding challenges associated with conventional welded sections.
With continuous advancements in fabrication technology, Engineered Steel (精制钢) is capable of realizing increasingly complex and artistic architectural forms. This enables architects to pursue more distinctive building appearances while enriching the urban landscape with unique architectural expressions.

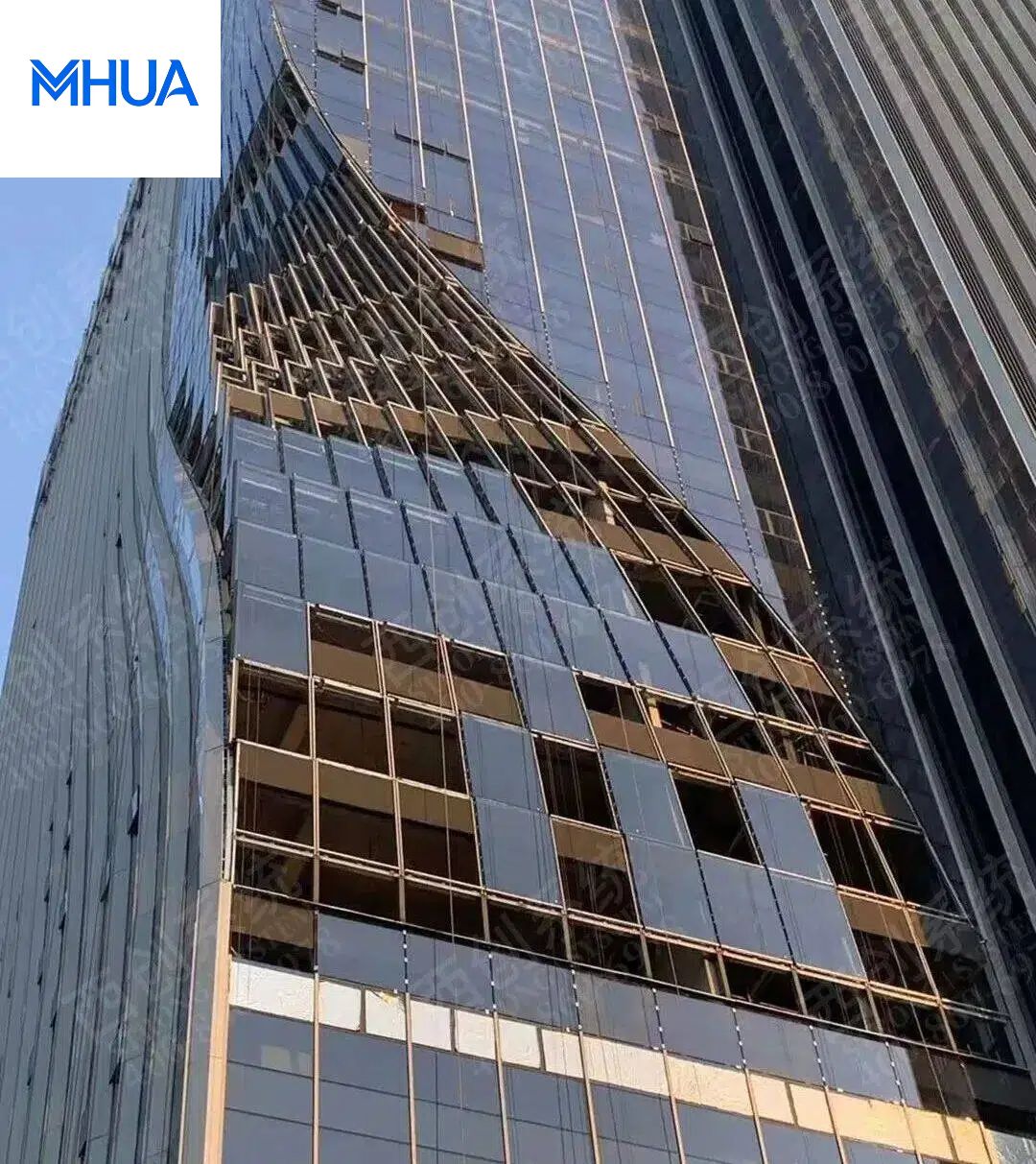

Examples include curtain wall systems inspired by natural forms, as well as free-form curved and twisted geometries derived from abstract artistic concepts.
Future Engineered Steel (精制钢) curtain wall systems will increasingly integrate functions such as solar shading, natural ventilation, daylighting, and acoustic insulation, creating comprehensive building envelope systems.
For example, intelligent shading louvers can be integrated into Engineered Steel (精制钢) framing members, automatically adjusting their position according to the angle and intensity of sunlight, thereby enabling intelligent façade management.
Future developments in Engineered Steel (精制钢) will continue to focus on optimizing manufacturing processes to reduce energy consumption and carbon emissions during production. By adopting renewable energy sources and energy-efficient equipment, the production of Engineered Steel (精制钢) can better support China's national "Dual Carbon" goals.
At the same time, improving the recyclability of Engineered Steel (精制钢) will make it easier to recover and reprocess steel components when buildings are demolished, enabling the circular use of resources and reducing construction waste.
